Cu lattice constant
As a second example of an intersting physical property to calculate we looked at the lattice constant of bulk Cu.
Our tasks here:
- Calculate the total energy of the system with different lattice constants. The lattice constant was most easily modified by changing the scaling factor in the input file.
-
Some important notes:
-
In each of the calculations the setup depended files (broyd, broyd.7, fl7para, pottot, potcoul, stars, wkf2) must be removed.
- The density (cdn1-file) must either removed as well (the start with generating a new one for each lattice constant) or might be tried to reused.
- To improve accuracy, we should increase the planewave cutoff for the basis functions to ~4.0 a.u.
- Only small variations of the lattice constant (a few percent) are expected to give reasonable results.
-
For reducing the lattice constant we might also have to reduce the MT-radius, but be carefull, the total energies can not be compared for calculations with different MT-radii. So you have to use the same MT-radius for all scaling factors you want to use.
-

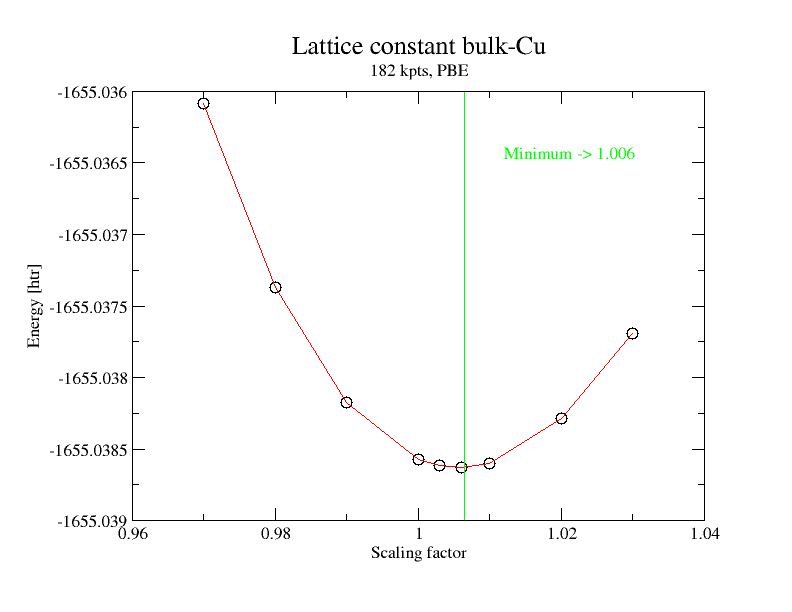

One should get pairs of energy versus scaling-factor like this:
